Key Takeaways
Large steel framed buildings typically take the form of single-storey portal frame structures or multi-storey beam-and-column systems. They serve a broad range of uses, from warehouses, factories, and agricultural barns through to offices, university buildings, and mixed-use commercial schemes. Steel frames have a high strength-to-weight ratio, which allows for large, clear-span interior spaces that suit modern logistics, manufacturing, and public sector requirements.
Early design coordination between the client, architect, structural engineer, and a fabricator such as MJ Patch & Co is essential to control cost, programme, and buildability. Designing large steel-framed buildings requires a coordinated approach from the outset, and involving the fabrication team at concept stage helps identify efficient column grids, flag transport constraints, and reduce expensive rework later.
UK projects must comply with Eurocode 3 (BS EN 1993), the Building Regulations 2010, and local planning permission rules. As of 2026, typical planning decisions in England take between 8 and 13 weeks depending on the scale and complexity of the application. All steel frame designs must comply with BS EN 1993 standards, and structural calculations must be submitted to Building Control alongside detailed drawings.
Modern steel frame construction relies on off-site fabrication, on-site bolted assembly, and strict health and safety management under the CDM Regulations. Steel frame buildings are quick to construct and durable, delivering faster build times and greater programme certainty than traditional masonry or in-situ concrete alternatives.
Introduction: Steel Framed Buildings in the Modern Construction Market
Steel buildings dominate industrial, logistics, and large commercial construction sectors. From distribution centres along the M4 corridor to manufacturing plants and data centres across the South West, steel frame construction is the default choice where speed, adaptability, and long clear spans matter most.
What do we mean by “large steel framed buildings”? Generally, these are structures with clear spans over 20 metres, floor areas above 1,000 square metres, or multi-storey frames supporting office, education, or healthcare uses. Steel is one of the most recycled materials globally, and its reuse credentials, combined with cost effective fabrication and rapid erection, make it a compelling choice compared to traditional masonry or in-situ concrete.
MJ Patch & Co (MJ Patch Engineering Ltd) is a South West based steel fabrication and engineering company delivering structural steel frames up to around 400 tonnes, alongside architectural metalwork, staircases, balustrades, balconies, canopies, and steel supplies for both commercial and residential customers. The dedicated team works from initial design through to the finished project.
This article walks through every stage of the process: concept design, planning permission, structural design, fabrication, erection, and finishing elements. Whether you are a contractor pricing a warehouse, an architect developing a multi-storey scheme, or a developer exploring options for an industrial building, you will find practical guidance here.
Understanding Steel Frame Buildings: Types, Uses, and Core Components
The terms steel framed buildings, steel frame buildings, and framed buildings are used interchangeably. They all refer to structures where hot-rolled steel sections form the primary load-bearing skeleton, as distinct from light gauge domestic infill systems used in timber-framed house construction.
The main building types include:
- Single-storey portal frames for warehouses, workshops, and agricultural barns, with clear spans typically ranging from 15 to 50 metres and eaves heights of 4 to 8 metres (or higher for logistics and high-bay storage).

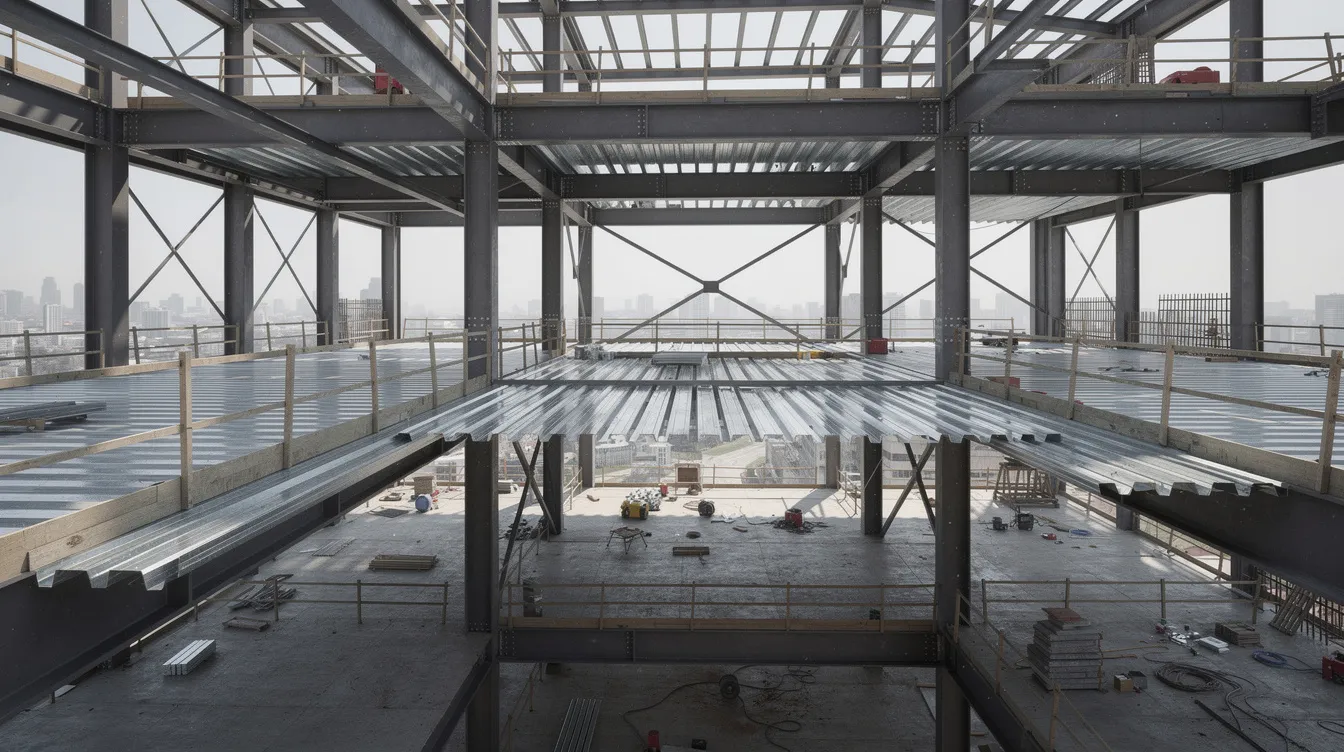

- Multi-storey beam-and-column frames for offices, university buildings, hospitals, and commercial development, using steel beams with composite metal decking and concrete floors.
- Mixed-use or public sector buildings requiring bespoke detailing, architectural metalwork, and integrated features such as atria, entrance canopies, and feature staircases.
The key structural components of any steel frame building include columns, rafters, beams, bracing members, purlins, side rails, base plates, and connections. Steel frame buildings use hot-rolled steel sections for structure. Roof and floor loads travel through beams and rafters into columns, then down into reinforced concrete foundations. This load path drives the selection of section sizes, connection details, and foundation design. Secondary steel supports cladding rails, mezzanines, and plant platforms, while composite design with steel and concrete can enhance structural efficiency by up to 30% on multi-storey floor systems.
Early Stage Planning: Brief Development, Feasibility, and Site Constraints
A typical steel building project starts with a client brief, outline budget, and target programme, often prepared with an architect or project manager before any steel design begins. At this stage, it is vital to establish the intended use, whether that is an industrial building, storage warehouse, production factory, offices, or a mixed-use scheme.
Key questions to address early include clear span requirements, loading assumptions (racking, overhead cranes, plant), eaves height, and any specialist spaces such as stair cores or balconies. Comprehensive ground investigations are essential for determining foundation design in heavy steel buildings, so commissioning a site investigation at RIBA Stages 1 to 2 should be a priority.
Site constraints also influence steel frame design. Access for articulated lorries and mobile cranes, proximity to neighbouring properties, height restrictions, flood zones, and contamination all need consideration. A high-level feasibility study at this stage should include initial structural concepts, order-of-magnitude tonnage estimates, and outline foundation concepts.
MJ Patch & Co can assist at this stage by reviewing concept sketches, offering advice on efficient column grids to reduce tonnage, and flagging potential buildability issues before planning applications are submitted. This early involvement helps create a more robust and cost effective design.
Planning Permission and Building Regulations for Steel Frame Construction
Every permanent large steel frame building needs to satisfy both planning permission and Building Regulations approval, even on private or industrial land. Most steel frame buildings require planning permission, and planning applications often require detailed drawings and structural calculations.
Planning requirements
Local planning authorities assess applications based on use class (for example, Class B2 industrial, B8 storage, or Class E commercial), building size, location, external appearance, and impact on surroundings. In England and Wales, standard planning applications usually take around 8 weeks, while more complex or major proposals may take up to 13 weeks for a decision.
Agricultural buildings under 1,000 square metres on established agricultural land may qualify for Prior Approval rather than full planning permission. However, professional advice should always be sought, as thresholds vary and other constraints such as flood risk or heritage designations may apply.
Building Regulations
Building Regulations approval is required for most steel frame buildings. The key Approved Documents include:
- Part A (structure), which focuses on structural load-bearing capacity and disproportionate collapse
- Part B (fire safety), where fire safety considerations for steel structures are outlined
- Part L (energy and thermal performance)
- Part M (access and use)
Steel frame designs must comply with BS EN 1993 standards, and structural calculations to Eurocode 3 must be submitted to Building Control. MJ Patch & Co typically collaborates with architects and structural engineers to prepare structural drawings, connection details, and calculation packs that support both planning applications and Building Control submissions.
Structural Design of Large Steel Framed Buildings
The structural engineer and steel fabricator work together to develop a robust design that satisfies safety, serviceability, and economy for the full life of the building. Engineering and design practices in UK steelworks must comply with regulatory frameworks, and the choice of structural system has a direct impact on programme and cost.
Common structural systems
| System | Typical use | Span range |
|---|---|---|
| Single-storey portal frame | Warehouses, workshops, barn | 15 to 50 m |
| Multi-span portal / crane frames | Heavy industrial, manufacturing | 20 to 60 m+ |
| Multi-storey beam-and-column | Offices, education, healthcare | 6 to 15 m grid |
Portal frame design is common for single-storey steel buildings, while multi-storey frames use structural steelwork with composite floors. Steel frame construction allows for large, clear-span interior spaces that suit a wide range of commercial and industrial uses.
Design codes and loading
All steel frame designs must comply with BS EN 1993 standards (Eurocode 3) for structural steel, with Eurocode 1 (BS EN 1991) covering actions including wind and snow. Structural loading analysis must account for dead, live, and environmental loads under BS EN 1993. Steel frame buildings can withstand high wind and snow loads when properly designed.
Engineers determine section sizes by evaluating permanent, variable, and wind loads, checking deflection limits for floors and roof, and accommodating openings for loading doors, roller doors, glazing, and mezzanines. BIM is used extensively in large projects to improve quality and coordination, particularly where multiple trades interface with the steel frame.
Stability design is critical: sway frames, cross bracing in selected bays, roof bracing, and moment connections all contribute to the overall stiffness of the structure. MJ Patch & Co routinely works on frames up to approximately 400 tonnes and can advise on optimising member sizes and connection details to reduce fabrication time and erection risk.
Detailing Connections, Foundations, and Interfaces
Large steel frame buildings succeed or fail on the quality of their details. Base plates, holding down bolts, splice connections, and interfaces with cladding, stairs, and secondary steel all need careful coordination.
Base plates and foundations
Column loads transfer into reinforced concrete pad or strip foundations through steel base plates. Accurate bolt setting-out and proper grouting are essential. Poor coordination with the groundworks contractor at this stage can cause costly re-work and programme delays.
Connection types
Typical connection types for large steel framed structures include:
- Bolted end-plate and fin plate connections for secondary beams
- Moment connections at portal haunches
- Splice locations selected to suit transport lengths and crane capacity
Execution Classes (EXC) determine the structural risk category for steel fabrication, with most commercial and industrial buildings falling into EXC2 or EXC3 depending on consequence class and loading conditions.
Movement joints and secondary steel
Buildings over 60 to 70 metres in length typically require movement joints, which influence cladding and roof details. Secondary steel provides support to cladding rails and purlins, framing around openings for roller doors, personnel doors, curtain walling, and rooflights, as well as support for canopies, plant platforms, and architectural features.
MJ Patch & Co’s in-house detailing team produces 3D models and fabrication drawings that resolve these interfaces before materials are ordered, reducing site clashes and keeping the project on programme.
Fabrication, Quality Assurance, and Steel Supplies
Structural steel moves from design into fabrication once drawings are approved. Steel sections and plate are procured from UK and European mills and processed in the workshop using cutting, drilling, and welding equipment. To understand more about the discipline, see our guide on what is steel fabrication.
Main fabrication processes
Steel fabrication includes techniques like laser cutting and welding, alongside:
- CNC cutting and drilling of beams and columns
- Welding of stiffeners, end plates, and connection brackets
- Tube bending and specialist fabrication for staircases, balustrades, and balconies
- Trial assembly of complex nodes where appropriate
Steel frames are fabricated off-site before assembly, which is a key reason steel frame buildings are faster to construct than traditional masonry. The factory environment allows tighter tolerances and better quality control than site-based work.
Surface protection
Galvanising protects steel and increases durability, particularly for external or exposed elements such as canopies and external staircases. Corrosion protection methods depend on environmental exposure and service life expectations, ranging from paint systems to hot-dip galvanising.
Quality control
Quality assurance in fabrication involves material certification, weld inspection, and bolt testing. Material certification for steel components follows BS EN 1090 and UKCA marking requirements. MJ Patch & Co holds ISO 9001 and BS EN 1090 accreditations, ensuring all our buildings and components meet the specifications required.
The company can also supply loose steel sections, plates, and smaller packages direct to contractors and self-builders, with steel buildings supplied cut to length and drilled for smaller projects.
On-Site Steel Frame Construction and Erection Methodology
On-site steel frame construction is typically much quicker than traditional methods, but requires careful planning to maintain safety and programme. Steel frame construction is cost-effective due to lower labour costs and shorter site durations compared to masonry or in-situ concrete.

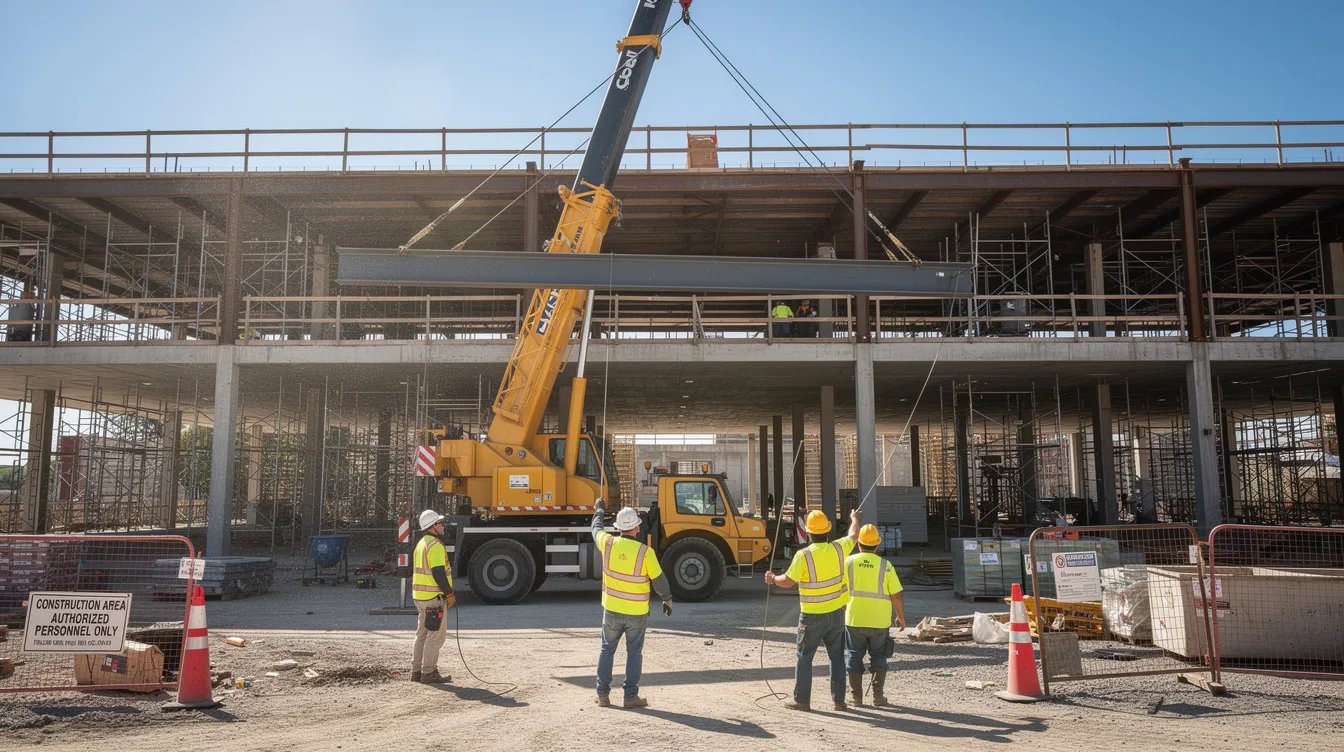

Standard erection process
- Survey and verify concrete foundations and holding down bolts against design tolerances
- Deliver steel in logical loads for bay-by-bay erection
- Erect columns and rafters using mobile cranes, followed by bracing, purlins, and side rails
- Progressively tighten bolts and carry out plumb, line, and level checks
The erection sequence of steel frames should consider temporary stability and weather constraints. Temporary bracing is essential until permanent bracing and roof sheeting are installed.
Equipment and site requirements
Typical equipment includes mobile cranes or telehandlers, cherry pickers for bolt-up work, and exclusion zones around all lifting operations. Site access must accommodate large deliveries and safe crane operation, particularly on busy industrial or public sector sites.
Health and safety
Compliance with CDM Regulations is mandatory. Certified erection teams work to method statements and risk assessments covering working at height, lifting operations, and temporary works. Every aspect of the erection process must be planned and communicated before work begins.
MJ Patch & Co often provides a complete service from delivery to final bolting, working closely with main contractors to coordinate with cladding, roofing, and follow-on trades, ensuring faster build times across the project.
Cladding, Envelope Performance, and Architectural Metalwork
The steel frame is only one part of the building. High-performing cladding and architectural elements complete the envelope and give the finished project its visual character.
Cladding options
Common cladding systems for steel buildings include:
- Single skin profiled sheeting for agricultural and unheated industrial buildings
- Insulated composite panels for temperature-controlled warehouses and commercial units
- Brick or blockwork to low levels with steel cladding above for durable, robust facades
- Curtain walling and glazing systems on office and public frontages
Thermal, acoustic, and fire performance
Part L energy targets drive insulation thicknesses and air-tightness detailing. Fire safety considerations for steel structures are outlined in UK Building Regulations Part B, and unprotected steel loses structural capacity at temperatures over 500 degrees Celsius, so intumescent coatings or encasement are often specified for multi-storey or high-risk buildings. Sustainability in steel construction focuses on reducing embodied carbon impacts, with high-performance envelope design playing a significant role.

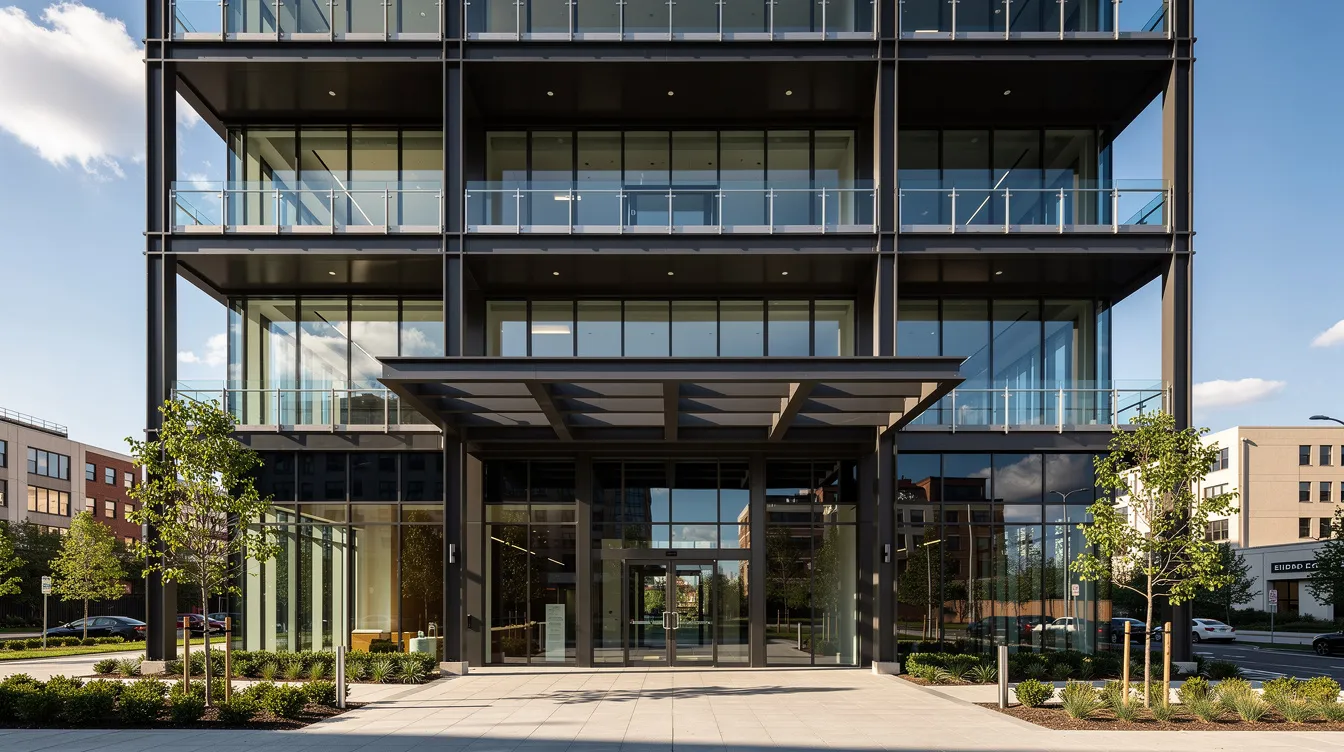

Architectural metalwork integration
MJ Patch & Co’s architectural metalwork capability integrates directly with the main frame. This includes internal and external staircases with steel stringers, glass and steel balustrading to atria, balconies, and walkways, and canopies and entrance features tied back to the primary structure. When the structural frame and architectural metalwork are designed together, the result is a building that performs well and looks the part, whether it is a university teaching block or a commercial office with integrated stair towers.
Cost Planning, Programme, and Working with MJ Patch & Co
The total cost of a steel framed building comprises frame tonnage, envelope, groundworks, fit-out, and professional fees. Steel frame construction is cost-effective due to lower labour costs and efficient off-site manufacture, but early collaboration is the best way to keep budgets under control.
Main cost drivers
| Cost element | Typical share of frame cost |
|---|---|
| Raw steel | 30 to 40% |
| Fabrication | 30 to 40% |
| Erection and cranes | 10 to 15% |
| Fire and corrosion protection | 10 to 15% |
Total frame costs for single-storey industrial and commercial buildings commonly range from around £80 to £200 per square metre of gross internal floor area. Required spans, floor loadings, crane gantries, and site logistics all influence the final price. Bespoke steel buildings can be tailored to specific requirements, but repetition of standard members and connections helps keep the cost down.
Programme benefits
With the design frozen, large steel frames for typical industrial buildings can often be fabricated and erected within a few months. Structural erection periods are measured in weeks rather than months for straightforward portal frames, which is why the steel building industry continues to grow.
Working with MJ Patch & Co
The process typically follows these steps:
- Initial enquiry with sketches or drawings
- Budget price based on the initial design
- Developed design and value engineering workshops
- Finalised fabrication drawings, delivery, and installation
- Architectural metalwork, snagging, and handover
We take pride in delivering a complete service across the full range of structural and architectural steelwork. The expert team at MJ Patch & Co is equipped to assist clients from concept through to completion, and we are proud to stand behind every project we deliver. We encourage clients to engage early to review steel options, advise on planning applications, and coordinate all aspects of the steelwork for smoother delivery across the construction industry.
Frequently Asked Questions about Large Steel Framed Buildings
How long does it typically take to design and build a large steel framed industrial building?
Design and approvals for a straightforward industrial building of around 1,500 to 3,000 square metres often take 3 to 6 months, including planning and Building Regulations. Fabrication typically adds a further 6 to 12 weeks, with on-site erection taking 3 to 6 weeks depending on complexity and site conditions. The overall programme depends on the detail and scale of the project, but steel frame construction consistently offers faster build times than traditional alternatives.
Can an existing steel frame building be extended or adapted later?
One of the key advantages of steel framing construction is adaptability. Extensions, additional mezzanines, or new openings can usually be added if the original structures and foundations have sufficient capacity. Fresh structural calculations and, in many cases, new planning permission will be required. This flexibility gives a steel framed building a longer useful life and better long-term value.
What fire protection is needed for large steel frame buildings?
Requirements depend on building use, size, and distance to escape routes. Multi-storey and many commercial or public buildings require a specified fire resistance period, typically achieved with intumescent paint, boarded encasement, concrete encasement, or fire-rated suspended ceilings. These measures are designed in accordance with Part B of the Building Regulations. Steel buildings can be designed for agricultural, industrial, and commercial use, each with different fire protection requirements.
Are steel framed buildings suitable for coastal or exposed rural sites?
Steel frames perform well in exposed environments when correctly protected. Appropriate hot-dip galvanising, paint systems, and cladding specifications should be chosen based on the local corrosion category and wind climate. Experienced fabricators like MJ Patch & Co can advise on suitable detailing for these conditions, ensuring the building remains durable throughout its design life.
Do MJ Patch & Co work only in the South West?
While MJ Patch & Co are based in the South West of England and have a strong presence across counties such as Somerset, Devon, Dorset, and Gloucestershire, the business regularly supports larger structural steel and architectural metalwork projects further afield across the wider UK. Where programme and logistics suit, the company is happy to discuss projects outside its home region.
